Gearbox units suitable for Sundyne & Sunflo Pumps
LMV-322, LMV-311, LMV-313, LMV-331, LMV-333, BMP-338, LMV-341, LMV-343, LMV-346, HMP-3000,
HMP-5000, LMC-311P, LMC-311F, LMC-331P, LMC-331F, LMC-317, LMC-337, LMC-313, LMC-333, LMC-341P, LMC-343, LMC-347, BMC-341, BMC-343, BMC-347, P-2000, P-3000
We can match your existing output speeds and your sealing requirements
with a unit that is superior to the OEM units.
Shaft Mount Gear Reducers
SMR SERIES THE ORIGINAL
Fully TXT and compatible mounts directly
to the driven shaft
WorldWide Electric’s Original Shaft Mount Reducer is dimensionally equivalent to the popular TXT series shaft mount reducers to provide you with the perfect solution for all of your most demanding applications.
Designed to accept all TXT compatible accessories without issue, the Original SMR allows you to take full advantage of your existing safety stock and installed base.
HYSMR SERIES
THE ORIGINALLY HYDRAULICALLY POWERED
Fully TXT and compatible mounts directly
to the driven shaft
WorldWide Electric’s Original Shaft Mount Reducer is dimensionally equivalent to the popular HXT series shaft mount reducers to provide you with the perfect solution for all of your most demanding applications.
Designed to accept all HXT compatible accessories without issue, the Original SMR allows you to take full advantage of your existing safety stock and installed base.
SCSMR SERIES
THE ELIMINATOR
Fully TXT and compatible and screw conveyor ready
The Eliminator Shaft Mount Reducer is designed for traditional TXT conveyor applications as well as screw conveyor applications.
Dimensionally equivalent to the popular TXT series shaft mount reducer, the Eliminator accepts CEMA-rated screw conveyor flanges, CEMA-rated drive shafts, and all TXT compatible accessories. The universal compatibility of the Eliminator allows distributors to eliminate unnecessary inventory while utilizing an existing stock of accessories and a previously installed base. ed bushing kits and backstops to complement your operations.
Shaft Mount Reducer Accessories
BACKSTOP ASSEMBLIES
Worldwide Electric backstop assemblies prevent a shaft from rotating in the reverse direction.
BELT GUARDS
WorldWide Electric belt guards protect the motor and gear reducer, and keep your employees safe.
MOTOR MOUNTS
WordlWide Electric offers versatile options for mounting motors.
SCREW CONVEYOR DRIVE SHAFTS
WorldWide Electric’s Screw Conveyor Drive Shafts are compatible with the Eliminator Shaft Mount Reducer and Ultimate Shaft Mount Reducer Series.
SCREW CONVEYOR FLANGES
WorldWide Electric’s Screw Conveyor Flanges are compatible with the Eliminator Shaft Mount Reducer and Ultimate Shaft Mount Reducer Series.
SMR SERIES REBUILD KITS
The Original SMR Rebuild Kit is compatible with WorldWide Electric’s Original Shaft Mount Reducer Series.
TAPERED BUSHING KITS
WorldWide Electric bushing kits provide tapered support for the shaft and can be used on both sides of a gear reducer.
TORQUE ARMS
WorldWide Electric’s Torque Arms are included with every shaft mount reducer. They are also available to pucrhase as needed.
Helical Bevel Gear Reducers
KAN SERIES
Featuring a C-face motor input flange and multiple output options.
The WorldWide Electric KHN and KAN Series Helical / Bevel Speed Reducers deliver a broad range of power and output torque to support a wide array of applications. The standard NEMA quill input design simplifies the task of retrofitting as it is universally compatible with any C-Face motor. The KHN Series gear reducer features a foot-mounted design while the KAN Series reducer is available with a torque arm or flange mounted design.
KAN Series Output Options
Hollow bore output
B5 output flange
B5 with single shaft output option
Integrated flange with single-shaft and double-shaft output options
KHN SERIES
Featuring a C-face motor input flange and multiple output options.
The WorldWide Electric KHN and KAN Series Helical / Bevel Speed Reducers deliver a broad range of power and output torque to support a wide array of applications. The standard NEMA quill input design simplifies the task of retrofitting as it is universally compatible with any C-Face motor. The KHN Series gear reducer features a foot-mounted design while the KAN Series reducer is available with a torque arm or flange mounted design.
KHN Series Output Options
Hollow bore output
Single shaft and double shaft output. KHN shafts are compatible with the KAN Series except when the KAN reducer features a B5 flange.

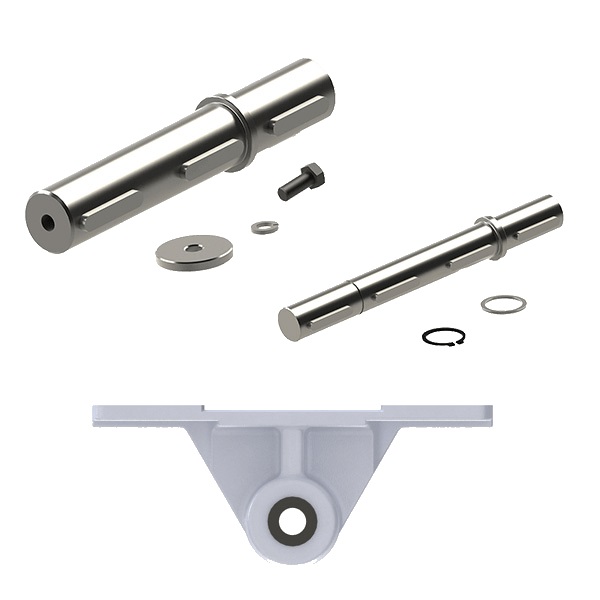

KAN/KHN ACCESSORIES
The following accessories are available for the KAN, and KHN Helical-Bevel Gear Reducer Series: Single Output Shafts, Double Output Shafts, Single Output Shaft with B5 Flange, B5 Output Flange, B14 Output Flange, KAN Series Torque Arm and Screw Conveyor Drive Shafts and Flange for the FHN Series.
Helical Inline Gear Reducers
WINL SERIES
Durable in-line speed reduction and universal compatibility with NEMA C-face motors simplify retrofits across many industrial process applications.
Delivering a broad array of output torque and speed, the WINL Series of Inline Helical Speed Reducers are engineered to support a wide range of applications, including fans, pumps, conveyors, material handling equipment, packaging machines, and textile machinery. The WINL reducer’s dimensions, such as bolt pattern, base-to-center line height, output shaft diameter, and usable shaft length, are designed to match the popular “R” Series European brand.
Parallel Shaft Helical Gear Reducers
FHN SERIES
Universal compatibility with NEMA C-face motors, a hollow bore output, and a broad range of power and output torques support many industrial process applications.
The WorldWide Electric FHN Parallel Shaft Helical Speed Reducers reduce output speed (RPM) and increase torque. The helical gear design provides high efficiency for your applications, such as driving belt, screw and chain conveyors, presses, extruders, and gantry cranes.
Modular Design, Simplified Retrofitting — The NEMA quill input design allows you to replace a motor or gear reducer separately if either fails. The modular design allows drop-in replacement for most European-produced parallel speed reducers. The hollow bore allows direct connection to the shaft so a coupling is not required.
Efficient, Strong, and Low Noise — All housings are cast iron for increased strength and reliability. Precision machined, 20rMo alloy steel gears reduce stress and corrosion while providing efficient rotation and quieter operation. Heat-treated pinions and shafts provide durability.
FHN Accessories
FHN ACCESSORIES
The following accessories are available for the FHN Series Parallel Shaft Helical Gear Reducers: Single Output Shafts, Double Output Shafts, Single Output Shaft with B5 Flange, B5 Output Flange, B14 Output Flange, KAN Series Torque Arm and Screw Conveyor Drive Shafts and Flange for the FHN Series.
Worm Gear Reducers
CALM SERIES – ALUMINUM
Flexible, reliable, and lightweight speed reducer with NEMA and IEC Metric Flange options.
When your application requires a lightweight speed reducer, WorldWide Electric’s aluminum right angle CALM Series worm gear reducers are a durable, reliable, and highly compatible option. Features include a hardened worm shaft for increased durability, two bearings on all input and output shafts for reliable performance, and multiple mounting holes for all angle mounts. A wide variety of NEMA and IEC Metric input flange and hollow output bore sizes will ensure compatibility with many applications.
WorldWide Electric Worm Gear Reducers are in stock and ready to ship from WorldWide Electric’s 6 regional warehouses. Order 25 or more Worm Gear Reducers to qualify for prepaid freight.
CALM ACCESSORIES
Accessories for Aluminum Worm Gear Reducers – CALM Series
HDR SERIES – CAST IRON
Flexible, high-quality and heavy-duty speed reduction
WorldWide Electric’s Heavy Duty Cast Iron Right Angle Worm Gear Reducers (HdR) feature solid, one-piece cast iron construction, durable carbon steel shafts, and the flexibility of multiple configurations. Featuring universal interchangeability with the Boston 700 series and other equivalent brands, WorldWide Electric’s HdR is an excellent choice for replacing existing units and completely new installations alike.
WorldWide Electric Worm Gear Reducers are in stock and ready to ship from WorldWide Electric’s 6 regional warehouses. Order 25 or more Worm Gear Reducers to qualify for prepaid freight.
HDR ACCESSORIES
Accessories for Cast Iron Worm Gear Reducers – HDR Series
SSHDR SERIES – STAINLESS STEEL
Heavy-duty speed reduction for corrosive environments
The WorldWide Electric Stainless Steel (SSHdR) series of heavy duty, right angle worm gear reducers offer exceptional value for applications where food-grade or corrosion resistant equipment is required. These BEAG/BISSC Certified reducers offer IP69K Protection for close-range high pressure, high temperature spray downs. The SSHdR series features a flange input/hollow bore output design with hollow output bore sizes ranging from 1” to 23/16” and center distances ranging from 1.75” to 3.25”. Bushing kits are sold separately to allow for a greater number of head shaft size configurations.
WorldWide Electric Worm Gear Reducers are in stock and ready to ship from WorldWide Electric’s 6 regional warehouses. Order 25 or more Worm Gear Reducers to qualify for prepaid freight.
SSHDR ACCESSORIES
Accessories for Stainless Steel Worm Gear Reducers – SSHDR Series
