HILTON HIGH PRESSURE/TEMPERATURE KNIFE GATE VALVES

Fabricated High Pressure/Temperature Valves. Severe service models designed to specific application needs in custom styles, configurations and materials.

Extended Service Cast Stainless Steel Knife Gate Valves (KGC-ES) Specifications

BODY MATERIAL
304, 316, 317, 254-SMO, 2205 Duplex Stainless Steel, Hastelloy C 276. Other body and gate materials are available upon request.

GATE MATERIALS
304, 316, 317, 17-4, 254-SMO, 410, 2205 Duplex Stainless Steel or Hastelloy C

DEZURIK EXCLUSIVE PREMIUM PACKING SYSTEM

Rounded Packing Chamber machined to tight tolerance
Matching Knife Gate with rounded edges
Anti-Extrusion Ring and many packing material options to meet the demands of your specific application

HIGH FLOW CAPACITY
Valve Seat inside diameter (I.D.) is equal to the I.D. of standard (ASME B36.10) pipe.

SIZE RANGE
2 – 48″ (5 – 1200mm)

PRESSURE RATING
2 – 48″ (5 – 1200mm) – 150 psi C.W.P. (1030 kPa)

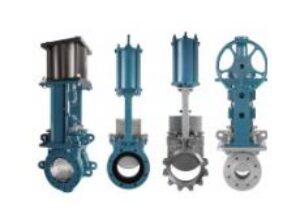

DEZURIK EXTENDED SERVICE CAST STAINLESS STEEL KNIFE GATE VALVES (KGC-ES)

DeZURIK Extended Service Life Cast Knife Gate Valves (KGC-ES) are designed for improved sealing, extended packing life and reduced maintenance in the toughest corrosive, abrasive liquid slurry or dry material applications including: Pulp and Paper, Mining, Waste Water, Chemical, Petrochemical, Power, Steel, Food Processing or other Industries. DeZURIK 2-24″ KGC Knife Gate Valves conform to the requirements for design and production testing of AWWA C 520-10, First Edition.

DEZURIK ECCENTRIC PLUG VALVES (PEC & PEF)

DeZURIK Eccentric Plug Valves are used to handle clean and dirty liquids, sludge, slurries and gases. They can be used for either isolation/shutoff or throttling/control services.

Eccentric Plug Valves (PEC & PEF) Specifications

SIZE RANGE
0.5 – 72″ (15 – 1800mm)

TEMPERATURE RANGE
450°F (232°C)

SHUTOFF CLASS
Resilient plug facing: drip tight
Metal plug: equal to ANSI/FCI 70-2 Class IV

BODY MATERIAL
Cast iron, ductile iron, bronze, aluminum, carbon steel, stainless steel, Alloy 20, and Monel

PRESSURE RATING
PEC Eccentric Plug Valves:

Cast Iron: 0.5 – 12″ = 175 psi (15 – 300mm = 1210 kPa); 14 – 72″ = 150 psi (350 – 1800mm = 1035 kPa)
Ductile Iron: 0.5 – 12″ = 285 psi (15 – 300mm = 1965 kPa); 14 – 72″ = 250 psi (350 – 1800mm = 1724 kPa)
Special: 450 psi (3100 kPa)

PEF Eccentric Plug Valves:

Cast Iron or Ductile Iron: 3 – 12″ = 175 psi (80 – 300mm = 1210 kPa); 14 – 36″ = 150 psi (350 – 1800mm = 1035 kPa)

Sabine Equipment offers remanufactured Fisher, Masoneilan and Valtek control valves in either stainless steel or carbon steel.

Griffco Valve back pressure valves help stabilize downstream pressure and deliver consistent flow or allow for high accuracy and stable operation.

Pressure Relief Valves protect from an upset condition (e.g. pressure spike, over pressurization, closed valve).

A worldwide orientated company with decades of experience in development and manufacturing of high-class specialty valves for power stations, industrial plants as well as for production, extraction and refining systems in the oil and gas sector.

Titan’s Check Valves

Titan Flow Control, Inc. offers a variety of check valve designs to meet your specific needs including Center-Guided Globe Style Valves, Center-Guided Wafer Style Valves, Center-Guided Threaded Valves, Dual Disc Check Valves, and Single Disk Check Valves.

Titan’s Butterfly Valves

Cast-in actuator flange is universally designed in accordance with the ISO 5211 to accommodate a variety of actuators.
Extended neck provides clearance for 2″ of piping insulation.
The one-piece through stem design offers exceptional strength, stability, dependability, and accurate disc positioning.
Ten position handle allows disc to be positioned with accuracy.
Phenolic Backed Cartridge Seat allows for higher vacuum and velocity service when compared to soft seats.
